Galerie d'images avec JSP Servlet Hibernate

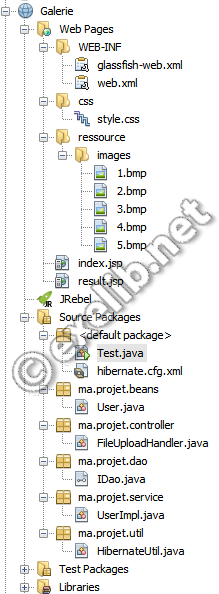

Structure du projet

Structure du Projet

Couche accès aux données

•  La entité User

  package ma.projet.beans;

  import javax.persistence.Entity;
  import javax.persistence.GeneratedValue;
  import javax.persistence.Id;

  /**
   *
   * @author Lachgar
   */
  @Entity
  public class User {

      @Id
      @GeneratedValue
      private int id;
      private String nom;
      private String prenom;
      private String image;

      public User() {
      }

      public User(String nom, String prenom, String image) {
          this.nom = nom;
          this.prenom = prenom;
          this.image = image;
      }

      public User(int id, String nom, String prenom, String image) {
          this.id = id;
          this.nom = nom;
          this.prenom = prenom;
          this.image = image;
      }

      public int getId() {
          return id;
      }

      public void setId(int id) {
          this.id = id;
      }

      public String getNom() {
          return nom;
      }

      public void setNom(String nom) {
          this.nom = nom;
      }

      public String getPrenom() {
          return prenom;
      }

      public void setPrenom(String prenom) {
          this.prenom = prenom;
      }

      public String getImage() {
          return image;
      }

      public void setImage(String image) {
          this.image = image;
      }

      @Override
      public String toString() {
          return "User{" + "id=" + id + ", nom=" + nom + ", prenom=" + prenom + ", image=" + image + '}';
      }

  }

• L'interface IDao

  package ma.projet.dao;

  import java.util.List;

  /**
   *
   * @author Lachgar
   */
  public interface IDao<T> {

      boolean create(T o);

      boolean update(T o);

      boolean delete(T o);

      T findById(int id);

      List<T> findAll();
  }

• La classe UserImpl

  package ma.projet.service;

  import java.util.ArrayList;
  import java.util.List;
  import ma.projet.dao.IDao;
  import ma.projet.beans.User;
  import ma.projet.util.HibernateUtil;
  import org.hibernate.Session;
  import org.hibernate.Transaction;

  /**
   *
   * @author Lachgar
   */
  public class UserImpl implements IDao<User> {

      private Session session;
      private Transaction tx;

      @Override
      public boolean create(User o) {
          session = HibernateUtil.getSessionFactory().openSession();
          tx = session.beginTransaction();
          session.save(o);
          tx.commit();
          return true;
      }

      @Override
      public boolean update(User o) {
          session = HibernateUtil.getSessionFactory().openSession();
          tx = session.beginTransaction();
          session.update(o);
          tx.commit();
          return true;
      }

      @Override
      public boolean delete(User o) {
          session = HibernateUtil.getSessionFactory().openSession();
          tx = session.beginTransaction();
          session.delete(o);
          tx.commit();
          return true;
      }

      @Override
      public User findById(int id) {
          User u = null;
          session = HibernateUtil.getSessionFactory().openSession();
          tx = session.beginTransaction();
          u = (User) session.get(User.class, id);
          tx.commit();
          return u;
      }

      @Override
      public List<User> findAll() {
          List<User> users = new ArrayList<User>();
          session = HibernateUtil.getSessionFactory().openSession();
          tx = session.beginTransaction();
          users = session.createQuery("from User").list();
          tx.commit();
          return users;
      }

  }

• Fichier de configuration (hibernate.cfg.xml)

  <?xml version="1.0" encoding="UTF-8"?>
  <!DOCTYPE hibernate-configuration PUBLIC "-//Hibernate/Hibernate Configuration DTD 3.0//EN" "http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd">
  <hibernate-configuration>
      <session-factory>
          <property name="hibernate.dialect">org.hibernate.dialect.MySQLDialect</property>
          <property name="hibernate.connection.driver_class">com.mysql.jdbc.Driver</property>
          <property name="hibernate.connection.url">jdbc:mysql://localhost:3306/galerie?zeroDateTimeBehavior=convertToNull</property>
          <property name="hibernate.connection.username">root</property>
          <property name="hibernate.hbm2ddl.auto">update</property>
          <mapping class="ma.projet.beans.User"/>
      </session-factory>
  </hibernate-configuration>

• La classe HibernateUtil

  package ma.projet.util;

  import org.hibernate.cfg.AnnotationConfiguration;
  import org.hibernate.SessionFactory;

  /**
   * @author Lachgar
   */
  public class HibernateUtil {

      private static final SessionFactory sessionFactory;

      static {
          try {
              sessionFactory = new AnnotationConfiguration().configure().buildSessionFactory();
          } catch (Throwable ex) {
              // Log the exception.
              System.err.println("Initial SessionFactory creation failed." + ex);
              throw new ExceptionInInitializerError(ex);
          }
      }

      public static SessionFactory getSessionFactory() {
          return sessionFactory;
      }
  }

 La couche présentation

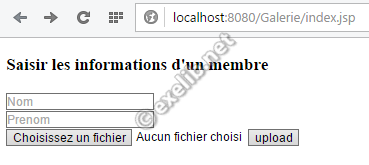

• Page de saisie

  <%--
      Document   : index
      Created on : 29 févr. 2016, 21:09:46
      Author     : Lachgar
  --%>

  <%@page contentType="text/html" pageEncoding="UTF-8"%>
  <!DOCTYPE html>
  <html>
      <head>
          <meta http-equiv="Content-Type"  content="text/html; charset=UTF-8">
          <title>Galerie en JSP Servlet - Java web application</title>
      </head>
      <body>
          <div>
              <h3> Saisir les informations d'un membre </h3>
              <form action="upload" method="post" name="uploadForm" enctype="multipart/form-data">
                  <input type="text" name="Nom" placeholder="Nom " value="" /><br/>
                  <input type="text" name="Prenom" placeholder="Prenom " value="" /><br/>
                  <input type="file" name="file" />
                  <input type="submit" value="upload" />
              </form>
          </div>
      </body>
  </html>

• La classe Servlet

  package ma.projet.controller;

  import java.io.File;
  import java.io.IOException;
  import java.io.InputStream;
  import java.util.List;
  import javax.servlet.ServletException;
  import javax.servlet.annotation.WebServlet;
  import javax.servlet.http.HttpServlet;
  import javax.servlet.http.HttpServletRequest;
  import javax.servlet.http.HttpServletResponse;
  import ma.projet.beans.User;
  import ma.projet.service.UserImpl;
  import org.apache.commons.fileupload.FileItem;
  import org.apache.commons.fileupload.disk.DiskFileItemFactory;
  import org.apache.commons.fileupload.servlet.ServletFileUpload;

  /**
   *
   * @author Lachgar
   */
  @WebServlet(urlPatterns = {"/FileUploadHandler"})
  public class FileUploadHandler extends HttpServlet {

      private String nom;
      private String prenom;
      private String path;
      private String UPLOAD_DIRECTORY;

      @Override
      protected void doPost(HttpServletRequest request, HttpServletResponse response)
              throws ServletException, IOException {
          UPLOAD_DIRECTORY = getServletContext().getRealPath("/").replace("build\\", "") + "ressource" + File.separator + "images";
          //process only if its multipart content
          if (ServletFileUpload.isMultipartContent(request)) {
              try {
                  List<FileItem> multiparts = new ServletFileUpload(
                          new DiskFileItemFactory()).parseRequest(request);
                  String name = null;
                  for (FileItem item : multiparts) {
                      if (!item.isFormField()) {
                          name = new File(item.getName()).getName();
                          item.write(new File(UPLOAD_DIRECTORY + File.separator + name));
                          path = UPLOAD_DIRECTORY + File.separator + name;
                      } else {
                          InputStream input = item.getInputStream();
                          if (item.getFieldName().equals("Nom")) {
                              byte[] str = new byte[input.available()];
                              input.read(str);
                              nom = new String(str, "UTF8");
                          }
                          if (item.getFieldName().equals("Prenom")) {
                              byte[] str = new byte[input.available()];
                              input.read(str);
                              prenom = new String(str, "UTF8");
                          }
                      }
                  }
                  //File uploaded successfully

                  UserImpl user = new UserImpl();
                  user.create(new User(nom, prenom, name));

                  request.setAttribute("message", "File Uploaded Successfully le nom est :" + nom + " le prenom est :" + prenom);
              } catch (Exception ex) {
                  request.setAttribute("message", "File Upload Failed due to " + ex);
              }
          } else {
              request.setAttribute("message",
                      "Sorry this Servlet only handles file upload request");
          }
          request.getRequestDispatcher("/result.jsp").forward(request, response);
      }

  }

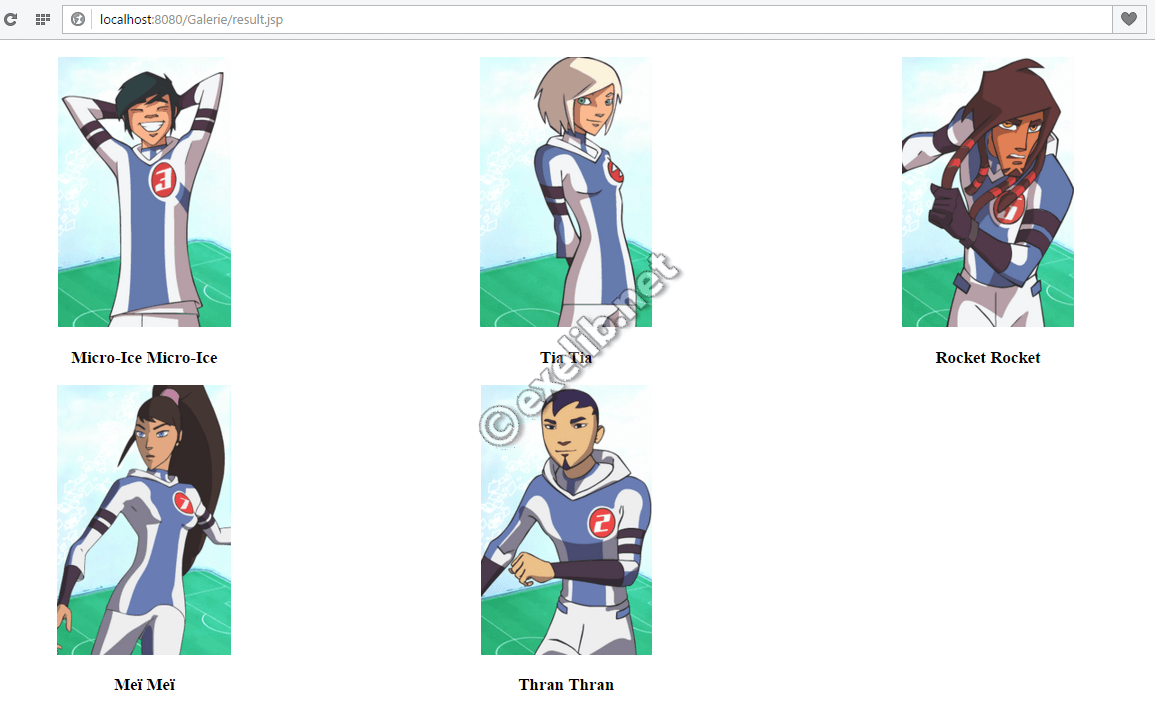

• La page pour afficher les membres (Galerie d'images)

  <%--
      Document   : result
      Created on : 29 févr. 2016, 21:13:24
      Author     : Lachgar
  --%>

  <%@page import="java.util.List"%>
  <%@page import="ma.projet.beans.User"%>
  <%@page import="ma.projet.service.UserImpl"%>
  <%@page import="java.io.File"%>
  <%@page contentType="text/html" pageEncoding="UTF-8"%>
  <!DOCTYPE html>
  <html>
      <head>
          <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
          <title>Galerie en JSP Servlet - Java web application</title>
          <link href="/css/style.css" rel="stylesheet" type="text/css"/>
      </head>
      <body>
          <div id="result">
              <h3>${requestScope["message"]}</h3>
              <%
                  UserImpl ui = new UserImpl();
                  List<User> users = ui.findAll();
                  for (int i = 0; i < users.size(); i++) {
              %>
              <div>
                  <figure>
                      <img src="/<%="ressource\\images\\" + users.get(i).getImage()%>" alt="<%= users.get(i).getNom()%>" />
                      <figcaption><h3><%= users.get(i).getNom() + " " + users.get(i).getPrenom()%> </h3></figcaption>
                  </figure>
                  <%}%>
              </div>
          </div>
      </body>
  </html>

• Le fichier style.css

  /*
      Created on : 2 mars 2016, 20:52:11
      Author     : Lachgar
  */

  figure {
      width: 33%;
      float: left;
      margin: 0;
      text-align: center;
      padding: 0;
  }

• Table user


  Table User
